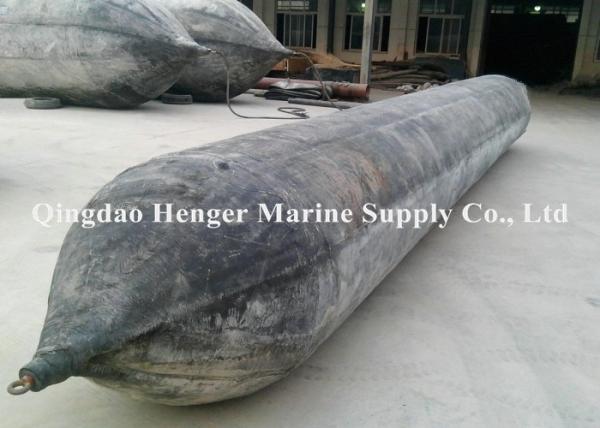

Natural Rubber Inflatable Rescue Marine Salvage Airbags And Inflatable Heavy LIfting Rubber Airbags
Qingdao Henger Shipping Supplies Co., Ltd is located in the beautiful coastal city of Qingdao. It is a marine fender, marine rubber fender, inflatable fender, launching airbag, marine launching airbag, load airbag, polyurethane fender, collision fender, and marine inflation Fenders and other multi-purpose airbag containers are specialized in the production and development of integrated companies.
The company has professional mechanical equipment and testing instruments, many (open rubber mixer, closed rubber mixer, four-roll calender fender vulcanizing tank of various specifications, etc.). The company has an excellent management team, advanced business philosophy, Have a team of highly qualified and innovative and dedicated talents. We always insist on providing high-quality services to meet the high standards of customers. We use our wisdom and sweat to do our best to refine our products. Relying on our good reputation and technical advantages, we have won unanimous praise from users and recognition in the same industry. We look forward to Sincerely cooperate with you, mutual benefit and win-win, for a better tomorrow.
The company has passed ISO900I: 2000 international quality management system certification. The company has passed the CCS certification of China Classification Society.
Heavy goods handling:
Marine airbags are widely used in caisson lifting, transportation, launching and other fields in port construction, as well as component displacement and launching.
Floating and salvage:
Marine airbags can generate greater buoyancy and strong load-bearing capacity, and are now widely used in rescue of stranded ships and other buoyancy and salvage fields.
Airbag packaging and transportation:
According to the provisions of the CB/T 3795-1996 of the People's Republic of China Ship Industry Standard, the packaging, transportation and storage of marine airbags should comply with the following standards:
1. Packaging
Folded and packed with plastic woven bags.
2. Transportation
Airbags should be lifted, lifted, and rolled in an inflated state when transported on short distances. It is strictly forbidden to drag on the ground.
The airbag should be folded and fixed to the tray during long-distance transportation, with a cushion underneath, and wrapped with a wrapping film on the outside.
Inflatable Marine Rubber Airbag Technical Parameter
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) |
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D |
| S1 | S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 |
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 |
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 |
| S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 |
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 |
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 |
| S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 |
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 |
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 |
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 |
| S2 | S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 |
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 |
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 |
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 |
| S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 |
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 |
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 |
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 |
| S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 |
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 |
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 |
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 |
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 |
| S3 | S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 |
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 |
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 |
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 |
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0
|
The development history of marine airbag:
According to related records, humans have been using the rolling wood principle to carry heavy objects more than 6,000 years ago. People still use the rolling wood principle to carry heavy objects in daily production and life. Marine airbag is a flexible heavy vehicle designed according to the principle of rolling wood.
In the 1980s, due to the manufacturing process and materials of airbags, the weight of airbag launching ships was between 100 tons and 500 tons.
In the early 1990s, people made innovations in the process and materials of airbag manufacturing: nylon cords replaced canvas as a new skeleton material, and a new type of integral winding manufacturing process was developed.
Some marine airbag manufacturers still use the old production technology of lap type. It is generally believed that the integrally produced marine airbag is more reasonable in structure and has a greater safety factor and bearing capacity.
Water-filled blasting test is an important method to check the performance of marine airbags.
Service and transportation:
The product warranty period of Henger is 18 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Thank you for reading. If you have any needs and interests, you can contact me.
Thanks for reading, if you have any interest or questions, please feel free to contact me.
